Starter circuit schematic

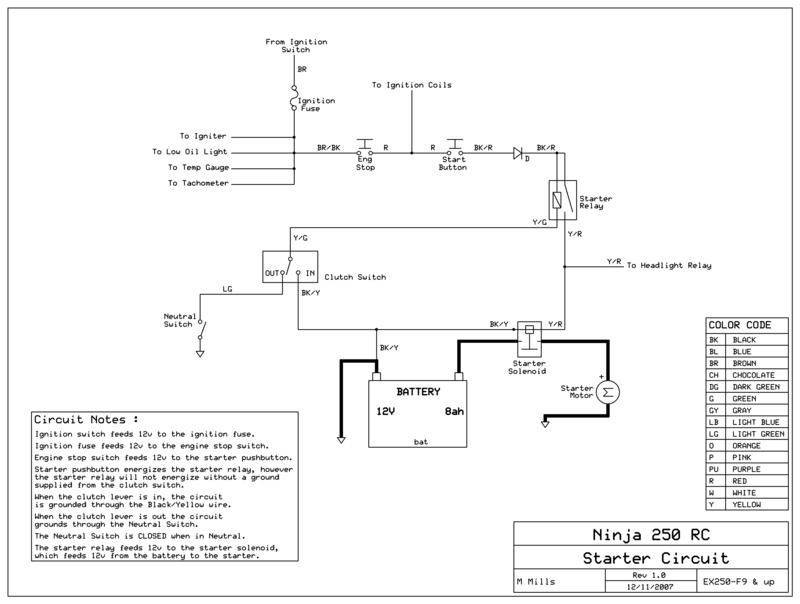

This shows all the wiring in the starter circuit. This could save you from a 'My bike won't start' post. Don't miss the wire colors (lower right) and the notes on the circuit (lower left).
